TMBP & SPCC

Cold Rolled Coil is produced, without heating, from pickled hot rolled coil which is rolled to 0.130mm~0.80mm (Ton Yi's product specification) through the process of electrolytic cleaning and annealing, and temper rolling. Due to its thin gauge, precise dimension, diversified surface roughness grades, easy to be coated and electroplated, excellent mechanical and processing properties, and easy to be punched and pressed, cold rolled steel can be used widely in such areas as electronic parts, appliances, steel furniture, containers, structural materials, etc.

Ton Yi's Cold Rolled Plant (TMBP plant) is a cold rolled plant with world-class technology and facilities. Except for supplying the customer with tin mill black plates (BP), cold rolled steel (SPCC) of thin gauge for electric and electronic parts and for galvanization is also the most competitive product in Ton Yi.


Download for Specifications

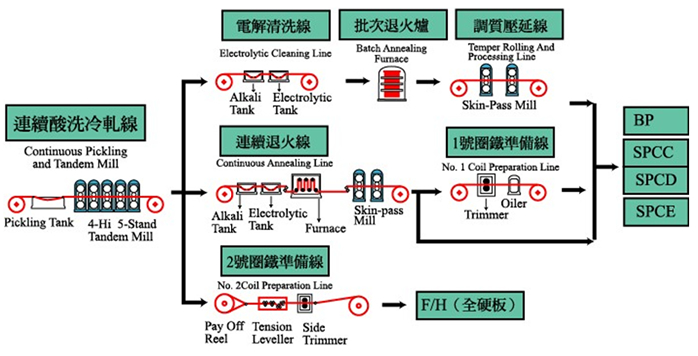

  • Manufaeturing Process of Cold Rolled Plant


    Ton Yi's Cold Rolled Plant (TMBP plant) consists of seven main production lines, one each of Continuous Pickling Line combined with Tandem Cold Rolling Mill (PL-TCM), Continuous Annealing Line (CAL), Electrolytic Cleaning Line (ECL), Batch Annealing Furnace (BAF), Temper and Processing Line (TPL) and two Coil Preparation Lines (CPL).

    The word TMBP is the initial of Tin Mill Black Plate, which means steel used for tinning & tin can making. The production of TMBP is based on the technology under a technical cooperation agreement with JFE Steel corporation. The operation of know-how of TMBP is the most sophisticated in the steel industry.





  • TMBP

    Tin Mill Black Plate (TMBP), one kind of thinner gauge, low carbon cold rolled steel, is the raw material of Tinplate and Tin Free Steel (TFS).

    1.Standards Specification

    The Tin Mill Black Plate (TMBP) produced in Ton Yi meets the requirements of JIS G3303,CNS 4155 standard.

    2.Specification Symbol


    Content
    Symbol
    SPB (JIS G3303、CNS ˋ4155)
    Steel Type MR : Medium Residual
    L : Low Residual
    D : Drawn
    Temper Grade BA : T-1、T-2、T-2.5、T-3、T-4
    CA : T-2.5CA、T-3CA、T-4CA、T-5CA
    Surface Finish B(Bright)、R(Stone)、M(Matte)、S(Silver)

    3.Product Dimension

    Thickness
    (mm)
    Width
    (mm)
    I.D.
    (mm/in)
    O.D.
    (mm)
    Weight
    (kg)

    0.147-0.60

    680-1,219

    406 / 16.0"
    419 / 16.5"
    508 / 20.0"

    2,120(max)

    21,000(max)


    SPCC

    Cold Rolled Steel Sheet in Coil, one kind of thinner gauged, low carbon cold rolled steel, is the raw material of electric parts, steel tube, motor parts, Gl, PPGl, stationery, etc..

    1.Standards Specification

    Cold Rolled Carbon Steel produced in Ton Yi meets the requirements of JIS G3141 standard.

    2.Specification Symbol


    Content
    Symbol SPCC、SPCD、SPCE(JIS G3141)
    Temper grade 1. Full hard 85 HRBS
    2. 1/8 Hard 50-71 HRBS
    3. 1/4 Hard 65-80 HRBS
    4. 1/2 Hard 74-89 HRBS
    5. Standard Temper Grade 65 HRBS
    Surface Finish B(Bright)、R(Stone)、D(Dull)

    3.Product Dimension

    Thickness
    (mm)
    Width
    (mm)
    I.D.
    (mm/in)
    O.D.
    (mm)
    Weight
    (kg)

    0.130-0.80

    680-1,250

    406 / 16.0"
    419 / 16.5"
    508 / 20.0"

    2,120(max)

    21,000(max)


    Ton Yi packing has been specially developed to guarantee product during the handling, transportation and warehousing. Therefore, our products of each kind are packed in accordance with our strict requirement for domestic for domestic and foreign shipment as follows:




    Identification
    All packages of Ton Yi BP or SPCC product will be attached with a label, which carrying STEEL TYPE,TEMPER,SURFACE FINISH,DIMENSIONS,WEIGHT,INSPECTION NO,etc.
