TON YI INDUSTRIAL CORP.

 Advantages of metal can + Resealing function + Various bottle types

 1.Advantages of metal can

    •Create a Striking and High-End image through metallic luster.

    •Airtight; light-blocking; Good fresh – keeping.

    •Can be recycled; Environmental friendly.

    •Transmit heat well; Can be sold by heating.

2.Resealing function

   •Easy to open and reseal as PET bottles.

   •The cap has anti-theft ring. Safe and secure.

3.Various bottle types+ The added value

   •Spout: φ28mm/ φ38mm; Capacity: 290~500ml.

   •Be sterilized by a sterilization equipment to ensure safety. (e.g. Milk Products )

   •We can meet customers' printing requirements for high-precision design.
      Customers also can choose to use non-printing cans with Shrinkable-film-labels or sticker -labels.

4.Film-covered-aluminum body

   •Compared with the common Bottle Can, it reduces the risk of coating dissolution,
       meets higher food safety requirements, and can be heated and drink hot.

5.More environmental friendly

    •Dry forming technology. There is no need to clean and drain water in the production process.

★New Bottle Can’s Quality assurance（The added value）

 1. We can detect the internal pressure of the can by An on-line pressure- sensitive detector.
       And also can detect the air tightness by Sound wave inspection machine before warehouse-out to ensure the quality of the product.

【New Bottle Can ‘s Quality assurance system】

Check all sterilized products before warehouse-out, New BC can be inspected by whole cartons, and not need to be unsealed. We can Improve work efficiency and reduce work load by this way.

On - line quality assurance:

filling →pressure- sensitive detector A→ cooling tunnel OR sterilizing equipment→pressure- sensitive detector B

①  The internal pressure of the filled product is detected by a pressure- sensitive detector.

The products will be sterilized at high temperature and stored in warehouse for one week.

Off - line quality assurance: warehouse →Sound wave inspection machine →warehouse-out

② Through Sound wave inspection machine to carry out the quality inspection of high-temperature sterilization products when warehouse-out.

 ( to prevent the contents from deteriorating due to minor leakage )

2. Security (The added value)

The bottom cover has explosion-proof function to ensure safety when internal pressure rises.

【The case on market】

    (1). Re - sealable containers are usually not drunk up at once time;

    (2). After being unsealed, the contents likely to mix with microorganisms, and deteriorate after being placed for a long time. Leading to internal pressure rises, causing the container to burst and personal injury.

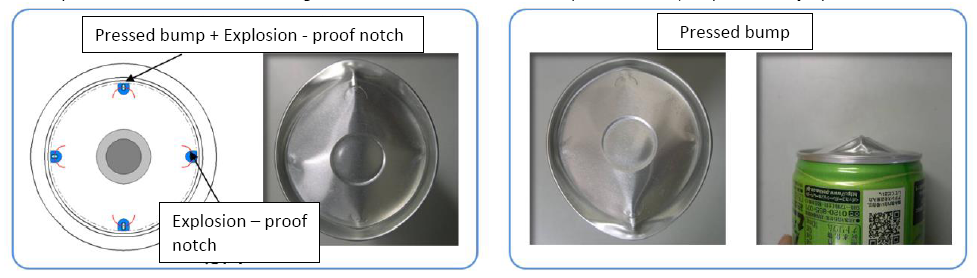

Bottom cover’s explosion-proof function:

The pressure can be released through the notch. So even the internal pressure rises, no personal injury will be caused.

3. Sound wave inspection machine (The added value)

【Inspect by whole cartons. No need to unseal!】

(1). The probe sends EMP to subject through electromagnetic coil to make can’s bottom vibrate;

(2). Collect the sound from vibration through microphone;

(3). Amplify the collected sound by AMP and analyze the frequency and intensity;

(4). Extract the Characteristics of frequency and judge the quality.
